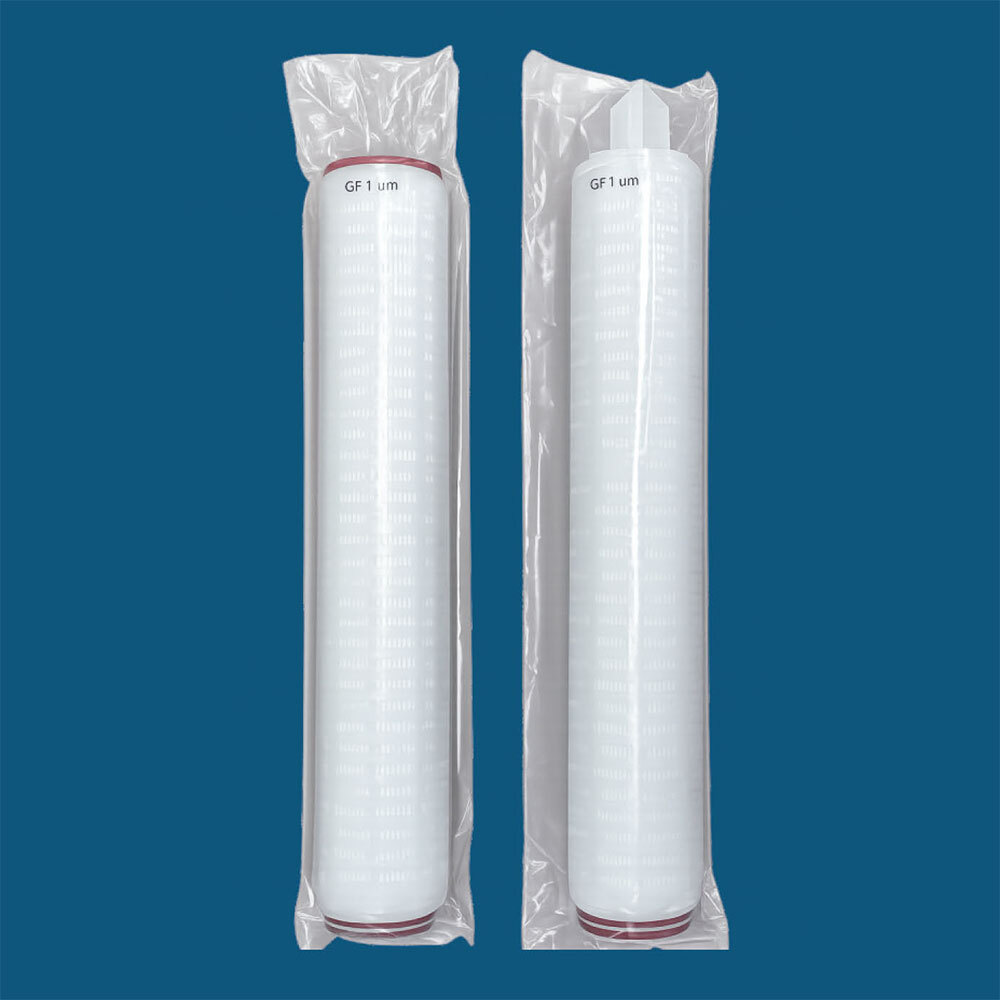

Glass Fiber Pleated Cartridges With pp Body

Get a Price/Quote

Product Details:

Pore Size 0.2 to 5 micron
Filter Media Glass fiber
Shape Cylindrical
Pressure Maximum working pressure: 4-5 bar
Inlet Diameter Not specified (typically matches cartridge diameter)
Sealing Silicone, EPDM, Viton, or Buna N O-rings/gaskets
Outlet Diameter Not specified (typically matches cartridge diameter)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Glass Fiber Pleated Cartridges With pp Body Price And Quantity

Minimum Order Quantity 50 Piece

Glass Fiber Pleated Cartridges With pp Body Product Specifications

Filter Media Glass fiber
Application Liquid filtration in industrial, pharmaceutical, chemical processing, water treatment, and food & beverage industries
Efficiency Up to 99.98%
Shape Cylindrical
Pore Size 0.2 to 5 micron
Type Filter Cartridge
Pressure Maximum working pressure: 4-5 bar
Product Type Glass Fiber Pleated Cartridge
Diameter Approximately 2.5 to 2.7 (63-69mm)
Cartridge Style Pleated
Sealing Silicone, EPDM, Viton, or Buna N O-rings/gaskets
Inlet Diameter Not specified (typically matches cartridge diameter)
Outlet Diameter Not specified (typically matches cartridge diameter)
Material Other
Filter Rating 0.2, 0.45, 1, 5 m (micron ratings available)

Sterilization Can be autoclaved or chemically sanitized
Integrity Tested Each cartridge integrity tested
Flow Rate Varies by size, typically up to 2500 LPH (liter per hour) per 10
pH Range 1-13
Color White
Weight Depends on size, approximately 150-700g
Packaging Individually poly-bagged
Construction Thermally bonded/glued, free of adhesives
Length 10, 20, 30, 40 inches (custom sizes available)
Temperature Tolerance Up to 80C (depends on construction)
End Cap Type DOE (Double Open End), SOE (Single Open End), with various options

Glass Fiber Pleated Cartridges With pp Body Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Widely use in Industries:

Breweries and Alcohol
Production Chemical Manufacturing
Industrial Water Treatment
Pharmaceutical Processes
Paints, Coatings, Resins Production

Material of Construction - Filter Media	Glass Microfiber Media
Material of Construction - Support Layers, Drainage Layers	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material Of Construction - Outer Cage, Inner Support, End Caps	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - O-ring/ Gaskets	Silicone / EPDM / Viton / PTFE Encapsulated
End Configurations Available	DOE/ 226 with Fin (Code 7) / 226 with Flat Ca / 222 with Fin (Pushfit type) / 222 with Flat Cap / Other Custom SOE connections
Pore Sizes Available (um)	0.5 to 10
Available Lengths	5" to 60"
Efficiency of Filter	More than 99%
Manufacturing Environment	Class 10000 Clean Room
Maximum Operating Temperature	80C
Recommended change-out differential pressure	2.5 Bar
Autoclave Capabilities	121C/30 min
Typical Surface Area	0.5 m (per 10")
Flowrate	30 m/hr (per 20")

Get the new deal on our Glass Fiber Pleated Cartridges with PP body, available in multiple lengths-10, 20, 30, and 40 inches, including custom sizes. Specifically crafted for pivotal industrial applications, these cartridges deliver phenomenal filtration efficiency up to 99.98%. The virtuosic construction features thermally bonded/glued joints, adhesive-free integrity, and are rigorously tested for integrity. Suitable for flow rates up to 2500 LPH per 10-inch cartridge and resistant to temperatures up to 80C (depending on build), they are ideal for demanding tasks. Enjoy robust chemical compatibility (pH 1-13), various end cap options (DOE, SOE), and diverse O-ring materials for optimal sealing. Each filter comes individually poly-bagged, white in color, lightweight, and can be autoclaved or chemically sanitized. Perfect for a range of industries, including pharmaceutical, chemical, water treatment, and food & beverage.

Exceptional Material Construction & Versatile Applications

Glass Fiber Pleated Cartridges with a polypropylene body are distinguished for their exceptional material performance and adaptability. Applied in industrial, pharmaceutical, water treatment, chemical processing, and food & beverage industries, these cartridges are used by professionals who demand high efficiency filtration. Their material features include a glass fiber media for advanced filtration, polypropylene construction for chemical resistance, and a robust pleated design to maximize dirt-holding capacity, ensuring outstanding longevity and value in pivotal operations.

Certified Excellence and Global Market Reach: Fast Dispatch & Secure Packaging

Glass Fiber Pleated Cartridges enjoy certifications that vouch for their quality, making them a preferred choice for both domestic and export markets. Widely dispatched from India to key markets worldwide after comprehensive quality checks, each cartridge is individually poly-bagged for safe transit. Quick dispatch times and secure packaging ensure prompt delivery, making them accessible for urgent requirements across pharmaceutical, industrial, and water processing sectors. Trust in our proactive approach for consistent supply and performance.

FAQ's of Glass Fiber Pleated Cartridges With pp Body:

Q: How do Glass Fiber Pleated Cartridges with PP body improve filtration efficiency in industrial processes?

A: These cartridges offer a pleated glass fiber media combined with a polypropylene body, maximizing the surface area and enhancing dirt-holding capacity, which ensures up to 99.98% filtration efficiency for demanding applications in various industries.

Q: What are the available sizes and end cap types for these filter cartridges?

A: These cartridges come in standard lengths of 10, 20, 30, and 40 inches, with custom sizes available. End cap options include DOE (Double Open End) and SOE (Single Open End) with a variety of O-ring materials for precise application compatibility.

Q: When should I choose Glass Fiber Pleated Cartridges for my facility?

A: Opt for these cartridges when high filtration efficiency, broad chemical compatibility, thermal stability (up to 80C), and easy sterilization (autoclave or chemical) are required for your liquid filtration needs, particularly in pharmaceutical, food & beverage, or industrial settings.

Q: Where are Glass Fiber Pleated Cartridges primarily used?

A: They are widely used in industrial liquid filtration, pharmaceutical manufacturing, chemical processing, water treatment plants, and food & beverage industries requiring controlled, high-quality filtrate output.

Q: What is the packaging and dispatch process for these cartridges?

A: Each cartridge is individually poly-bagged to prevent contamination during storage and transit. Dispatching is prompt, ensuring quick delivery to both domestic and export destinations, reflecting our commitment to quality and timely supply.

Q: What benefits do these cartridges offer over conventional filters?

A: They provide superior filtration efficiency, higher chemical resistance, compatibility with high-temperature processes, and greater longevity. Their pivotal design also allows for easy sterilization and broad compatibility with standard filter housings.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Filter Cartridge' category

PTFE Filter Cartridges Minimum Order Quantity : 50 Cartridge Style : Other, Double Open End (DOE) / Single Open End (SOE) Product Type : PTFE Filter Cartridge Sealing : Silicone, EPDM, Viton, Teflon Encapsulated (ORings/Gaskets) Material : Other Filter Rating : 0.1, 0.2, 0.45, 1, 3, 5 micron options Shape : Cylindrical Application : Chemical Processing, Pharmaceuticals, Food & Beverage, Water Treatment Efficiency : 99.99% Filter Media : Other, Hydrophobic PTFE Membrane Pore Size : 0.15 micron Type : Other, Pleated Filter Cartridge Diameter : 68 mm Pressure : Up to 4.1 bar (at 25C) Outlet Diameter : Standard 69 mm Inlet Diameter : Standard 69 mm

Send Inquiry

PES Filter Cartridges Minimum Order Quantity : 50 Cartridge Style : Other, Double Open End, Single Open End, with various end cap configurations Product Type : Membrane Filter Cartridge Sealing : Thermal Bonded, Silicone, EPDM, Viton or PTFE encapsulated Orings Material : Other Filter Rating : 0.1, 0.2, 0.45, 0.65 microns Shape : Cylindrical Application : Pharmaceutical, Food & Beverage, Electronics, Laboratory, Water Purification Efficiency : 99.99% Filter Media : Other, PES (Polyethersulfone) Pore Size : 0.1, 0.2, 0.45, 0.65 m Type : Other, Pleated Cartridge Filter Diameter : 69 mm Pressure : 4 bar (at 25C) Outlet Diameter : Standard 69 mm (custom options available) Inlet Diameter : Standard 69 mm (custom options available)

Send Inquiry

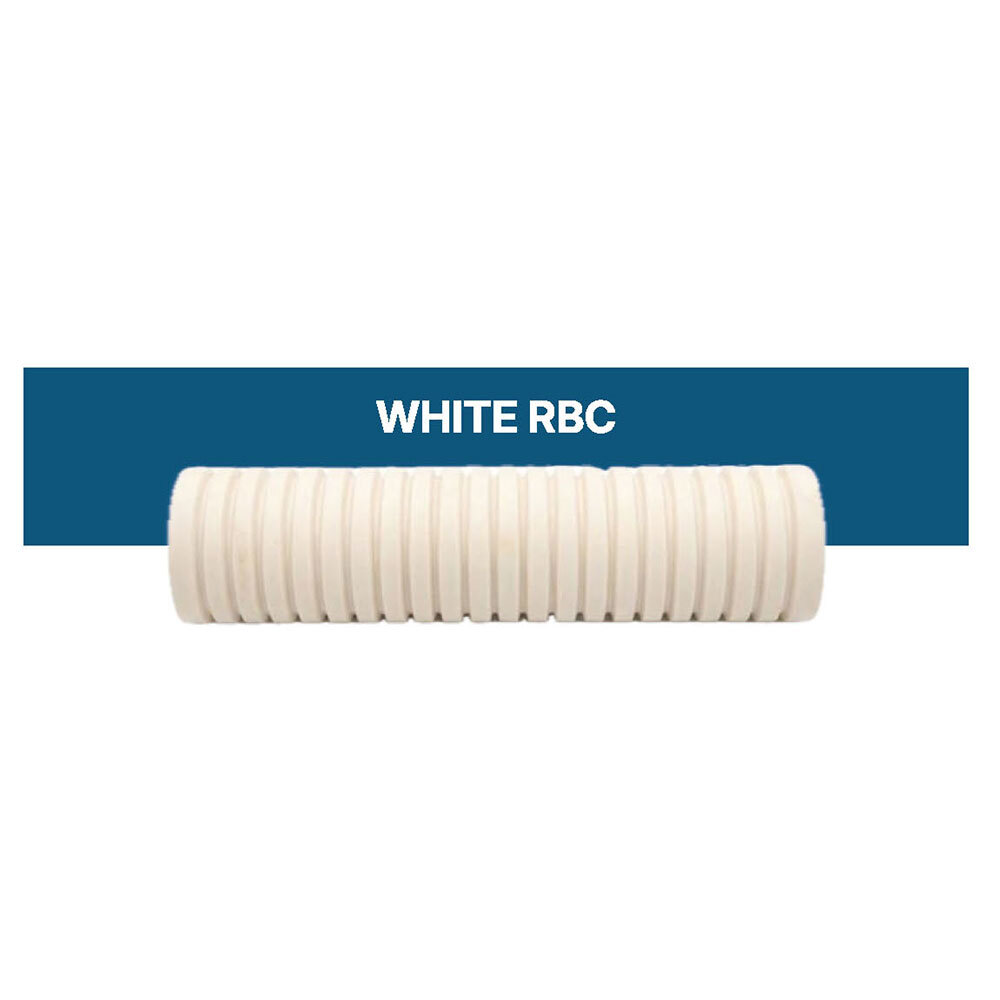

Resin Bonded Filter Cartridges White RBC Minimum Order Quantity : 50 Cartridge Style : Other, Resin Bonded, Cylindrical Product Type : Resin Bonded Filter Cartridge Sealing : Open Both Ends (OBE)/Gasket Available Material : Other Filter Rating : 1 to 100 micron (depending on model) Shape : Cylinder Application : Industrial Filtration, Liquid Filtration, Chemical Processing, Water Treatment Efficiency : High Particle Removal Efficiency Filter Media : Other, Resin Bonded Fiber Media Pore Size : Micron Rated Type : Other, Deep Filtration Cartridge Diameter : Standard Sizes Available (Typically 2.5 to 4.5) Pressure : Maximum Operating Pressure: Up to 7 bar
