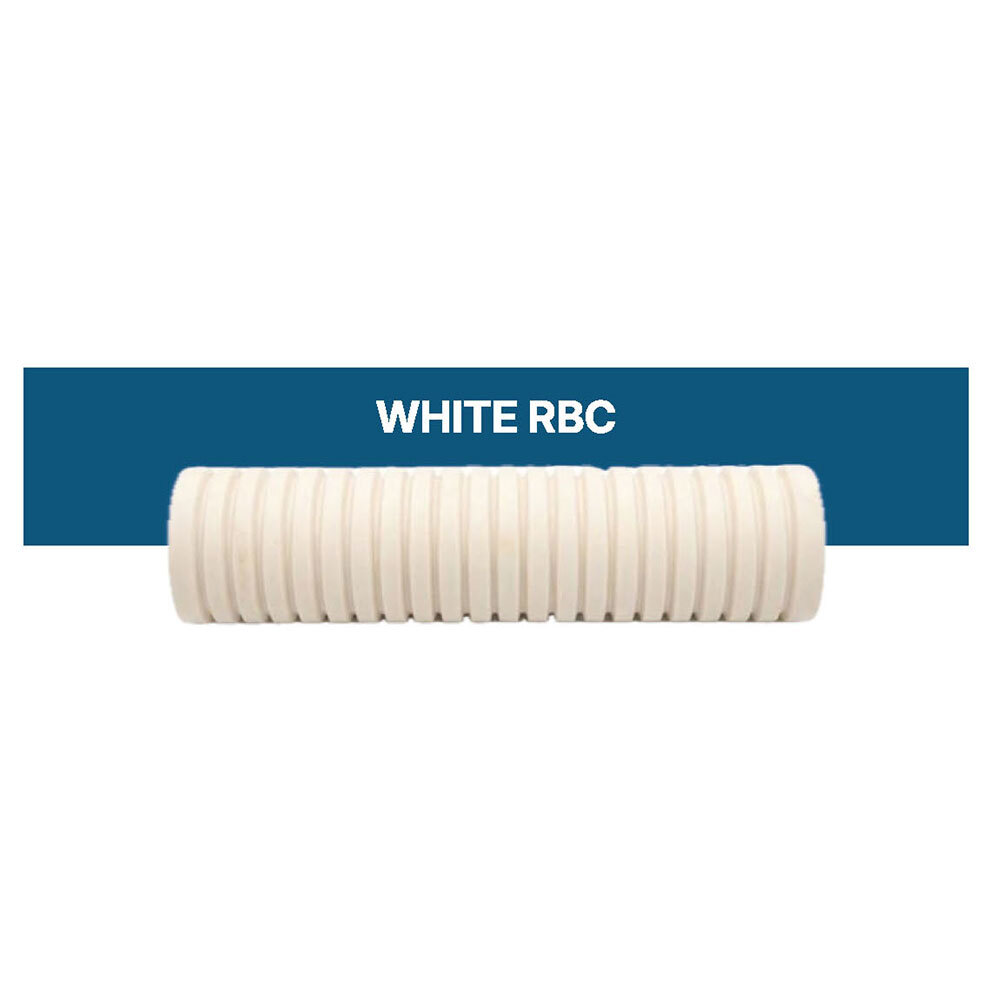

Resin Bonded Filter Cartridges White RBC

Get a Price/Quote

Product Details:

Shape Cylinder
Sealing Open Both Ends (OBE)/Gasket Available
Pressure Maximum Operating Pressure: Up to 7 bar
Filter Media Resin Bonded Fiber Media
Pore Size Micron Rated
Filter Rating 1 to 100 micron (depending on model)
Product Type Resin Bonded Filter Cartridge
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Resin Bonded Filter Cartridges White RBC Price And Quantity

Minimum Order Quantity 50 Piece

Resin Bonded Filter Cartridges White RBC Product Specifications

Diameter Standard Sizes Available (Typically 2.5 to 4.5)
Filter Rating 1 to 100 micron (depending on model)
Filter Media Resin Bonded Fiber Media
Pressure Maximum Operating Pressure: Up to 7 bar
Sealing Open Both Ends (OBE)/Gasket Available
Pore Size Micron Rated
Product Type Resin Bonded Filter Cartridge
Cartridge Style Resin Bonded, Cylindrical
Type Deep Filtration Cartridge
Application Industrial Filtration, Liquid Filtration, Chemical Processing, Water Treatment
Shape Cylinder
Material Other
Efficiency High Particle Removal Efficiency

Inner Core Self-supporting, No Metal Core
Core Type Coreless Design
Shelf Life Long Shelf Life in Proper Storage Conditions
Length Standard 10
Compatibility Broad Chemical Compatibility
Flow Rate High Flow Capability
PH Range 3 - 10
Outer Diameter Varies by Specification
Usage Prefiltration, Process Filtration, Final Filtration
Replacement Frequency Depends on Application & Contaminant Load
Color White
Operating Temperature Up to 120C (varies by model)

Resin Bonded Filter Cartridges White RBC Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Widely use in Industries:

Oil Filtration Industries
Breweries and Alcohol Production
Chemical Manufacturing
Industrial Water Treatment
Pharmaceutical Processes
Edible Oil Filtration
Paints, Coatings, Resins Production

Parameter	Specification

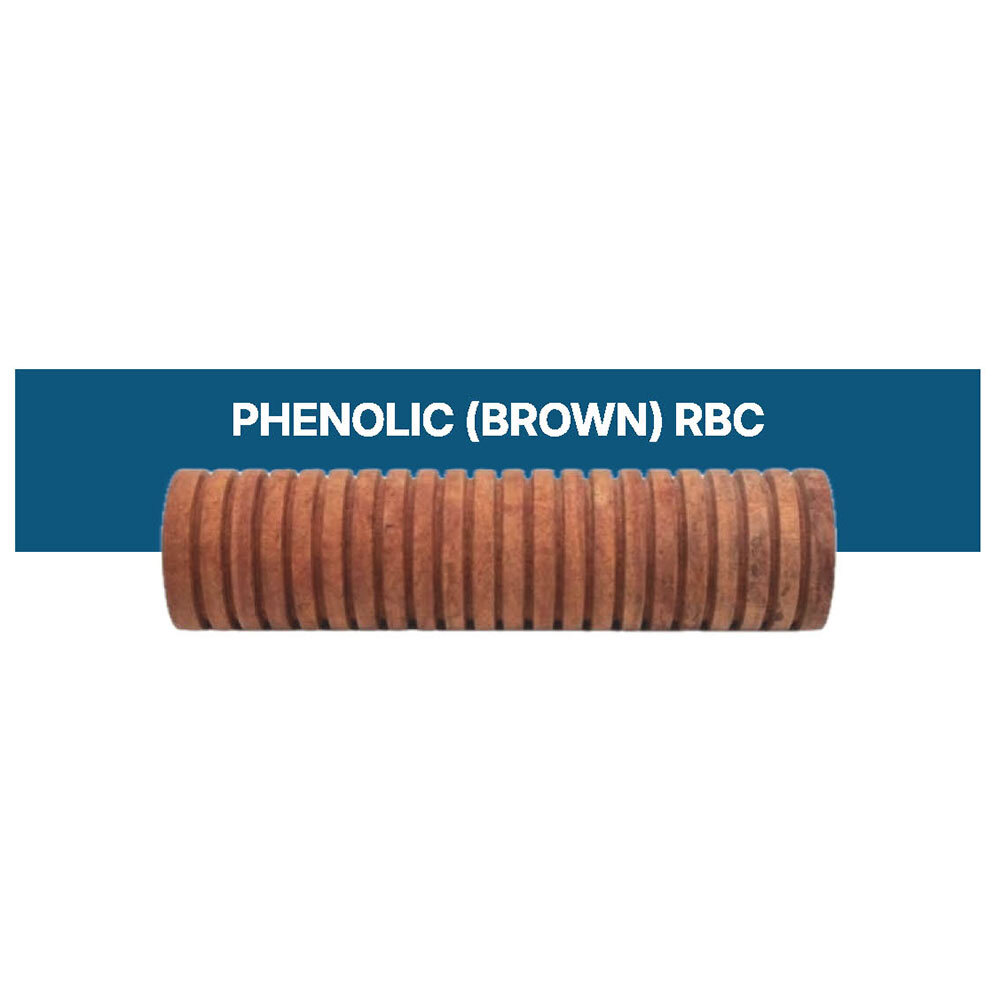

Material of Construction	Brown RBC: Intrinsically bonded alpha cellulose fibres with melamine formaldehyde (MF) resin Brown RBC: Specially formulated fibres impregnated with phenol formaldehyde (PF) resin Grey RBC: Specially formulated fibres impregnated with melamine formaldehyde (MF) resin
Food Grade Compatibility	White RBC are compatible as per FDA 21 CFR
Length	50 mm to 1016 mm
Surface Type	Grooved / Plain
End Connections	DOE / SOE
Outer Diameter Inner Diameter	63 mm OD 28 mm ID 70 mm OD 25 mm ID 130 mm OD 68 mm ID
Pore Sizes Available	Fine Filters: 0.1 m / 0.2 m / 0.45 m / 0.5 m Pre Filters: 1 m / 3 m / 5 m Basic Filters: 10 m / 25 m / 50 m / 75 m / 100 m
Flowrate from Single 10" Filter Element	Up to 1200 litres/hour (Water) Up to 300 litres/hour (Oil - 68 cSt)
Maximum Operating Temperature	White RBC: 100C Brown RBC: 140C Grey RBC: 121C
Maximum Pressure	White RBC: 60 psi (4.2 kg/cm) Brown RBC: 90 psi (6.2 kg/cm) Grey RBC: 90 psi (6.2 kg/cm)
Recommended Change-Out Differential Pressure	Increase of 2 Bar in pressure from the initial working pressure of a new cartridge

Discover remarkable filtration reliability with Resin Bonded Filter Cartridges White RBC, an eminent choice for industrial, chemical, and water treatment applications. Highlighted by competitive pricing and monumental high-flow performance, these white cartridges feature a coreless, self-supporting design with no metal core-ensuring broad chemical compatibility and long shelf life. With high particle removal efficiency and a range of micron ratings (1 to 100), they are manufactured using premium fiberglass/cellulose fiber bonded with phenolic resin, suitable for standard lengths and operating up to 120C, offering a distinguished standard in filtration solutions.

Key Features and Industrial Applications

Resin Bonded Filter Cartridges White RBC feature a deep filtration design, high particle removal efficiency, and a coreless, cylindrical style for reliable process, prefiltration, and final filtration applications. Highlighted for their eminent performance in chemical processing, water treatment, and industrial liquid filtration, these cartridges leverage a robust resin-bonded fiber media. Their remarkable chemical compatibility and longevity make them suitable for various processes, ensuring consistent and efficient filtration in demanding environments.

Premium Packaging, Terms, and Delivery

Each Resin Bonded Filter Cartridge White RBC is handed over in premium, well-secured packaging, safeguarding product integrity during transit. We partner with established goods transport services throughout India for timely and damage-free deliveries. Flexible payment terms accommodate both advance and credit-based orders, while our typical delivery time ensures prompt fulfillment based on quantity and location. Trust in our careful logistics for a seamless purchasing experience, keeping your industrial filtration needs prioritized.

FAQ's of Resin Bonded Filter Cartridges White RBC:

Q: How do I select the correct size and micron rating for my Resin Bonded Filter Cartridge White RBC?

A: Choose the length (10", 20", 30", 40") and micron rating (1 to 100 micron) based on your application's flow requirements and desired particle retention. For assistance, refer to your process specifications or consult the supplier for recommendations.

Q: What makes the Resin Bonded Filter Cartridge White RBC suitable for chemical processing and water treatment?

A: These cartridges are constructed from fiberglass/cellulose fiber with a phenolic resin bond, providing broad chemical compatibility and enduring performance in aggressive environments, making them ideal for challenging industrial, process, and water filtration tasks.

Q: When should I replace the Resin Bonded Filter Cartridge White RBC?

A: Replacement frequency depends on the specific contaminant load and application. Monitor differential pressure and filtration efficiency; it is recommended to change the cartridge when a significant drop in flow or increase in pressure is observed.

Q: Where can the Resin Bonded Filter Cartridge White RBC be used most effectively?

A: They are most effectively used in industrial filtration, chemical processing, and water treatment systems where high-flow, deep filtration, and broad chemical compatibility are required.

Q: What is the process for installing these filter cartridges?

A: The installation process involves inserting the coreless cartridge into the compatible housing, ensuring proper sealing with gaskets if applicable. Always follow manufacturer guidelines for best results and safety.

Q: How does the coreless, self-supporting design benefit the user?

A: The coreless, self-supporting design eliminates metal cores, reducing contamination risks and allowing for easier disposal, lighter handling, and greater compatibility with a wider range of chemicals.
