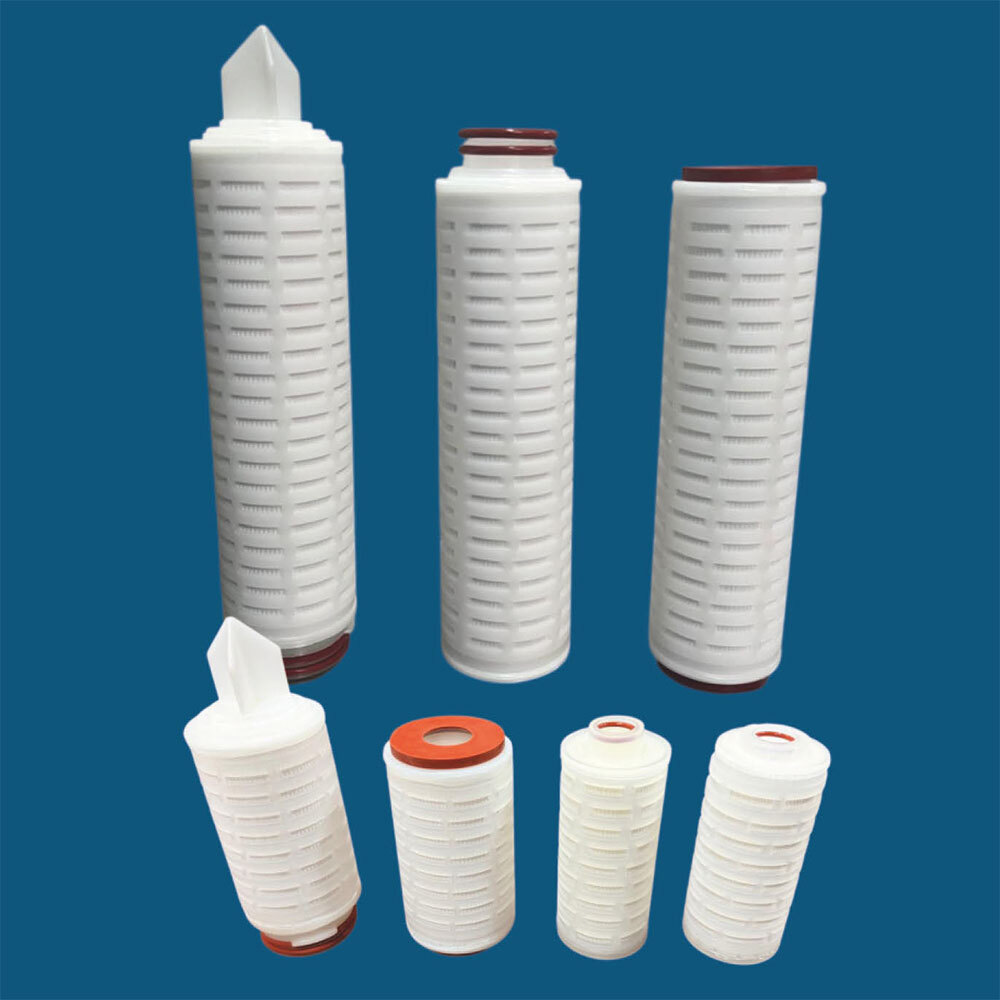

PP Pleated Filter Cartridges

Get a Price/Quote

Product Details:

Shape Cylindrical
Sealing EPDM, Silicone, NBR, or Viton Gasket/O-Ring
Pressure Max. Operating - 4 bar at 25C
Outlet Diameter Standard 1 Inch or As Required
Inlet Diameter Standard 1 Inch or As Required
Filter Media PP Pleated Membrane
Pore Size 0.1 to 10 microns
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PP Pleated Filter Cartridges Price And Quantity

Minimum Order Quantity 50 Piece

PP Pleated Filter Cartridges Product Specifications

Inlet Diameter Standard 1 Inch or As Required
Cartridge Style Pleated
Diameter 2.5 Inch or 4.5 Inch
Efficiency Up to 99.98%
Sealing EPDM, Silicone, NBR, or Viton Gasket/O-Ring
Outlet Diameter Standard 1 Inch or As Required
Material Other
Pressure Max. Operating - 4 bar at 25C
Shape Cylindrical
Filter Rating 0.1, 0.2, 0.45, 1, 5, 10 microns (Varies by model)
Product Type PP Pleated Filter Cartridge
Pore Size 0.1 to 10 microns
Application Water Filtration, Food & Beverage, Pharmaceuticals, Chemical Processing, Electronics
Type Filter Cartridge
Filter Media PP Pleated Membrane

Outer Support Polypropylene Cage
Flow Rate Varies by cartridge, typically 6-15 LPM at 2 bar
Core Polypropylene
Surface Area High surface area for long service life
End Cap Configuration DOE, 222 O-Ring, 226 O-Ring
Maximum Operating Temperature 80C
Length 5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch
Sterilization Autoclavable up to 121C
Color White with colored ends

PP Pleated Filter Cartridges Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Widely use in Industries:

Breweries and Alcohol
Production Chemical Manufacturing
Industrial Water Treatment
Pharmaceutical Processes
Paints, Coatings, Resins Production

Material of Construction - Filter Media	100% Polypropylene High-grade microfiber (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - Support Layers, Drainage Layers	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material Of Construction - Outer Cage, Inner Support, End Caps	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - O-ring/ Gaskets	Silicone / EPDM / Viton / PTFE Encapsulated
End Configurations Available	DOE/ 226 with Fin (Code 7) / 226 with Flat Cap/ 222 with Fin (Pushfit type) / 222 with Flat Cap / Internal O ring Pushfit type / Other Custom SOE connections
Pore Sizes Available (um)	0.1 to 100
Available Lengths	5" to 60"
Efficiency of Filter	More than 99%
Manufacturing Environment	Class 10000 Clean Room
Maximum Operating Temperature	80C
Recommended change-out differential pressure	2.5 Bar
Autoclave Capabilities	121C/30 min
Typical Surface Area	0.5 m (per 10")

Get the incomparable performance of our PP Pleated Filter Cartridges-highly recommended for critical filtration needs across industries. Redeem the benefits of outstanding efficiency (up to 99.98%) and a meritorious long service life, thanks to an advanced high surface area pleated PP membrane. Available in lengths from 5 to 40 inches and multiple end caps (DOE, 222, 226 O-Ring), these cartridges withstand up to 80C and 4 bar pressure. Their versatile design ensures adaptiveness for water filtration, food & beverage, pharmaceuticals, chemical processing, and electronics, truly setting a new filtration standard.

Versatile Applications and Outstanding Advantages

PP Pleated Filter Cartridges are ideal for water filtration, food & beverage, pharmaceutical, chemical processing, and electronics sectors. Suitable for use in systems requiring exceptional particle removal down to 0.1 microns, they guarantee reliability and consistent purity. Their pleated design maximizes surface area, prolonging filter life and reducing replacement frequency. An outstanding advantage lies in their autoclavable nature and compatibility with a variety of end cap configurations, making them a wise choice for numerous demanding applications.

Supply Ability and Market Reach

We handover PP Pleated Filter Cartridges at a remarkable rate to both domestic and international buyers. With a robust supply ability, we cater reliably to diverse industries. Our main export markets include Asia, Middle East, Africa, and Europe. Payment terms are flexible, allowing buyers to settle at list price via various modes, such as advance transfer or letter of credit. Experience seamless procurement and exceptional supply consistency with our trusted manufacturing expertise.

FAQ's of PP Pleated Filter Cartridges:

Q: How do I select the correct PP Pleated Filter Cartridge for my application?

A: Selection depends on application type, desired micron rating (from 0.1 to 10 microns), cartridge length, flow rate, and end cap design. Consider your system's pressure, temperature, and chemical compatibility with polypropylene and gasket/O-ring materials.

Q: What is the process for installing these cartridges in my filtration system?

A: Installation is straightforward-simply insert the cartridge into the designated housing, ensuring proper alignment with the end cap configuration (DOE, 222, or 226 O-Ring). Verify sealing with the appropriate EPDM, silicone, NBR, or Viton gasket or O-ring for leak-free operation.

Q: When should the PP Pleated Filter Cartridge be replaced?

A: Cartridge replacement is recommended when the filter experiences an increased pressure drop, reduced flow rate, or upon reaching its service life as determined by your system's operating conditions and filtration load.

Q: Where can PP Pleated Filter Cartridges be effectively used?

A: These cartridges are highly effective in water filtration plants, food & beverage production facilities, pharmaceutical manufacturing, chemical processing units, and electronics industries, where high purity and reliability are essential.

Q: What benefits do I gain from using PP Pleated Filter Cartridges?

A: You benefit from their outstanding filtration efficiency (up to 99.98%), long service life due to high surface area, robust temperature and pressure tolerance, as well as easy maintenance thanks to their autoclavable and versatile design.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Filter Cartridge' category

PES Filter Cartridges Minimum Order Quantity : 50 Type : Other, Pleated Cartridge Filter Filter Media : Other, PES (Polyethersulfone) Pore Size : 0.1, 0.2, 0.45, 0.65 m Application : Pharmaceutical, Food & Beverage, Electronics, Laboratory, Water Purification Product Type : Membrane Filter Cartridge Filter Rating : 0.1, 0.2, 0.45, 0.65 microns Shape : Cylindrical Sealing : Thermal Bonded, Silicone, EPDM, Viton or PTFE encapsulated Orings Material : Other Cartridge Style : Other, Double Open End, Single Open End, with various end cap configurations Efficiency : 99.99% Pressure : 4 bar (at 25C) Diameter : 69 mm Outlet Diameter : Standard 69 mm (custom options available) Inlet Diameter : Standard 69 mm (custom options available)

Send Inquiry

Custom Fabricated Filter Minimum Order Quantity : 50 Type : Other, Custom Fabricated Filter Filter Media : Other, Synthetic Fiber, Mesh, Paper, or Custom Pore Size : 1 m to 100 m (customized) Application : Industrial Filtration, Dust Collection, Liquid Filtration, HVAC Systems Product Type : Industrial Filter Cartridge Filter Rating : 1 to 100 Micron Shape : Cylindrical / Round Sealing : Gasket / Oring / Welded Material : Other, Stainless Steel, Polyester, Polypropylene, Cellulose Cartridge Style : Other, Cylindrical / Custom Fabricated Efficiency : Up to 99.99% Pressure : Max 7 Bar (variable by design) Diameter : Custom as per requirement (typically 50mm 300mm) Outlet Diameter : Custom (as per client specification) Inlet Diameter : Custom (as per client specification)

Send Inquiry

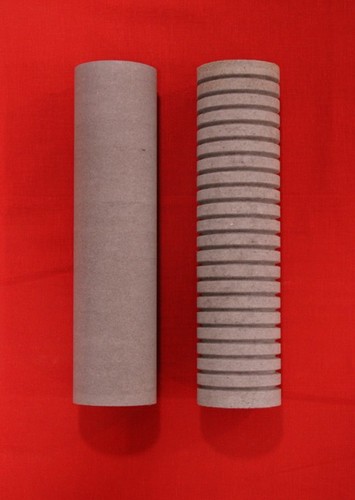

Resin Bonded Filter Cartridges Grenolic (Grey) RBC Minimum Order Quantity : 50 Type : Other, Resin Bonded Filter Cartridge Filter Media : Other, Resin bonded cellulose fiber Pore Size : Customizable, typically 1100 micron Application : Liquid and gas filtration, chemical processing, oil, and solvent filtration Product Type : Grenolic (Grey) RBC Filter Rating : 1 to 100 micron (as per requirement) Shape : Cylindrical Sealing : Flat gasket or Oring, as required Material : Other Cartridge Style : Other, Grooved, cylindrical Efficiency : Up to 99% fine particulate removal Pressure : Maximum up to 7 bar (100 psi) Diameter : 1 inch, 1.5 inch, or as required
