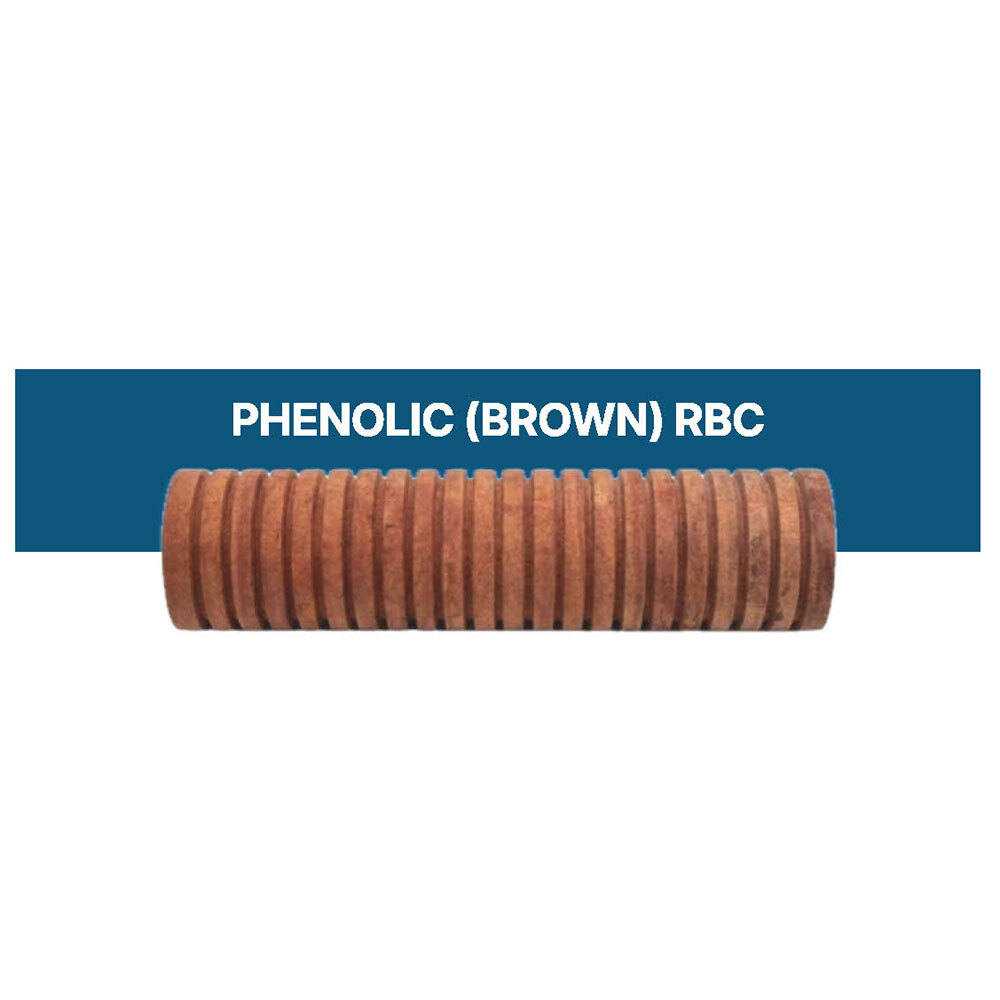

Resin Bonded Filter Cartridges Phenolic (Brown) RBC

Get a Price/Quote

Product Details:

Sealing Gasket or O-ring end caps available
Pore Size Customizable
Filter Rating 1 to 200 micron (depending on model)
Pressure Maximum 6 bar (87 psi)
Shape Cylindrical
Filter Media Phenolic resin and cellulose fibers
Product Type Phenolic (Brown) RBC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Resin Bonded Filter Cartridges Phenolic (Brown) RBC Price And Quantity

Minimum Order Quantity 10 Piece

Resin Bonded Filter Cartridges Phenolic (Brown) RBC Product Specifications

Sealing Gasket or O-ring end caps available
Product Type Phenolic (Brown) RBC
Type Resin Bonded Filter Cartridge
Pressure Maximum 6 bar (87 psi)
Material Other
Shape Cylindrical
Efficiency Up to 99% for particulate removal
Application Liquid filtration, pre-filtration, and industrial process filtration
Pore Size Customizable
Cartridge Style Grooved, cylindrical
Filter Media Phenolic resin and cellulose fibers
Filter Rating 1 to 200 micron (depending on model)
Diameter Standard sizes range from 2.5 to 4.5 inches

Temperature Resistance Up to 120C (248F)
Core Coreless or with phenolic impregnated core (optional)
End Cap Configuration DOE (double open end), SOE (single open end)
pH Range 3 to 10
Collapse Pressure Up to 6 bar (varies with size)
Suitable For Oils, solvents, water, paints, and chemicals
Retention Efficiency True depth filtration for high retention efficiency
Color Brown
Flow Rate High dirt holding capacity for long service life
Length Standard lengths: 10, 20, 30, 40 inches
Packing Individually shrink-wrapped or polybagged
Standards Complied Meets industrial and chemical filtration standards

Resin Bonded Filter Cartridges Phenolic (Brown) RBC Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Widely use in Industries:

Oil Filtration Industries
Breweries and Alcohol Production
Chemical Manufacturing
Industrial Water Treatment
Pharmaceutical Processes
Edible Oil Filtration
Paints, Coatings, Resins Production

Parameter	Specification
Material of Construction	Brown RBC: Intrinsically bonded alpha cellulose fibres with melamine formaldehyde (MF) resin Brown RBC: Specially formulated fibres impregnated with phenol formaldehyde (PF) resin Grey RBC: Specially formulated fibres impregnated with melamine formaldehyde (MF) resin
Food Grade Compatibility	White RBC are compatible as per FDA 21 CFR
Length	50 mm to 1016 mm
Surface Type	Grooved / Plain
End Connections	DOE / SOE
Outer Diameter Inner Diameter	63 mm OD 28 mm ID 70 mm OD 25 mm ID 130 mm OD 68 mm ID
Pore Sizes Available	Fine Filters: 0.1 m / 0.2 m / 0.45 m / 0.5 m Pre Filters: 1 m / 3 m / 5 m Basic Filters: 10 m / 25 m / 50 m / 75 m / 100 m
Flowrate from Single 10" Filter Element	Up to 1200 litres/hour (Water) Up to 300 litres/hour (Oil - 68 cSt)
Maximum Operating Temperature	White RBC: 100C Brown RBC: 140C Grey RBC: 121C
Maximum Pressure	White RBC: 60 psi (4.2 kg/cm) Brown RBC: 90 psi (6.2 kg/cm) Grey RBC: 90 psi (6.2 kg/cm)
Recommended Change-Out Differential Pressure	Increase of 2 Bar in pressure from the initial working pressure of a new cartridge

Shop Now for our new, gilt-edged Resin Bonded Filter Cartridges Phenolic (Brown) RBC, designed for top-tier industrial filtration. These customizable cartridges deliver terrific performance in challenging conditions, with standard lengths from 10 to 40 inches and diameters of 2.5 to 4.5 inches. Built from phenolic resin bonded cellulose fibers, they resist temperatures up to 120C and pressures up to 6 bar. Suitable for oils, solvents, water, paints, and chemicals, their high dirt holding capacity supports a long service life. Enjoy up to 99% particulate removal with true depth filtration. End caps are available in DOE and SOE options, with customizable pore sizes for diverse applications.

RBC Cartridges: Exceptional Chemical and Liquid Filtration

Resin Bonded Filter Cartridges Phenolic (Brown) RBC are crafted for rigorous usage, including liquid filtration, pre-filtration, and diverse industrial processes. With customizable filter ratings (1-200 micron), these cartridges excel in high-retention efficiency and long-lasting dirt holding due to their true depth filtration technology. Their core options and flexible end cap configurations make them ideal for applications across oils, solvents, chemicals, and process water in demanding environments.

Swift Delivery and Reliable Supply for RBC Cartridges

Benefit from express shipping and timely delivery, ensuring your operations face minimal downtime. With reliable supply ability, Resin Bonded Filter Cartridges are available with list price quotations and bulk order fulfillment upon purchase order confirmation. Manufactured in India, these cartridges are certified to meet strict industrial and chemical filtration standards, assuring consistent quality and compliance with your project's requirements across all supplied units.

FAQ's of Resin Bonded Filter Cartridges Phenolic (Brown) RBC:

Q: How do I select the right RBC cartridge size and configuration for my needs?

A: To choose the suitable RBC cartridge, consider your application's flow rate, required retention efficiency, pressure, temperature, and chemical compatibility. Standard lengths are available in 10, 20, 30, and 40 inches, and both DOE and SOE end caps are offered to fit your housing requirements.

Q: What types of contaminants can these cartridges efficiently remove?

A: These cartridges provide up to 99% efficiency in removing particulates in the 1 to 200 micron range, making them ideal for filtering suspended solids, dirt, and other contaminants from oils, solvents, water, chemicals, and paints.

Q: Where are Resin Bonded Filter Cartridges Phenolic (Brown) RBC manufactured and supplied from?

A: Our RBC cartridges are designed, manufactured, and supplied from India by experienced manufacturers and suppliers that comply with recognized industrial and chemical filtration standards.

Q: What is the typical delivery process and time frame for these filter cartridges?

A: We offer express shipping services. Delivery times depend on order quantity and location but are generally prompt to ensure minimal operational downtime. Orders are processed upon purchase order receipt with list price quotations available in advance.

Q: How do these cartridges enhance the efficiency and longevity of industrial processes?

A: The true depth filtration design grants excellent dirt holding capacity, extends service intervals, and improves the performance and protection of downstream equipment, leading to lower maintenance and operational costs.
