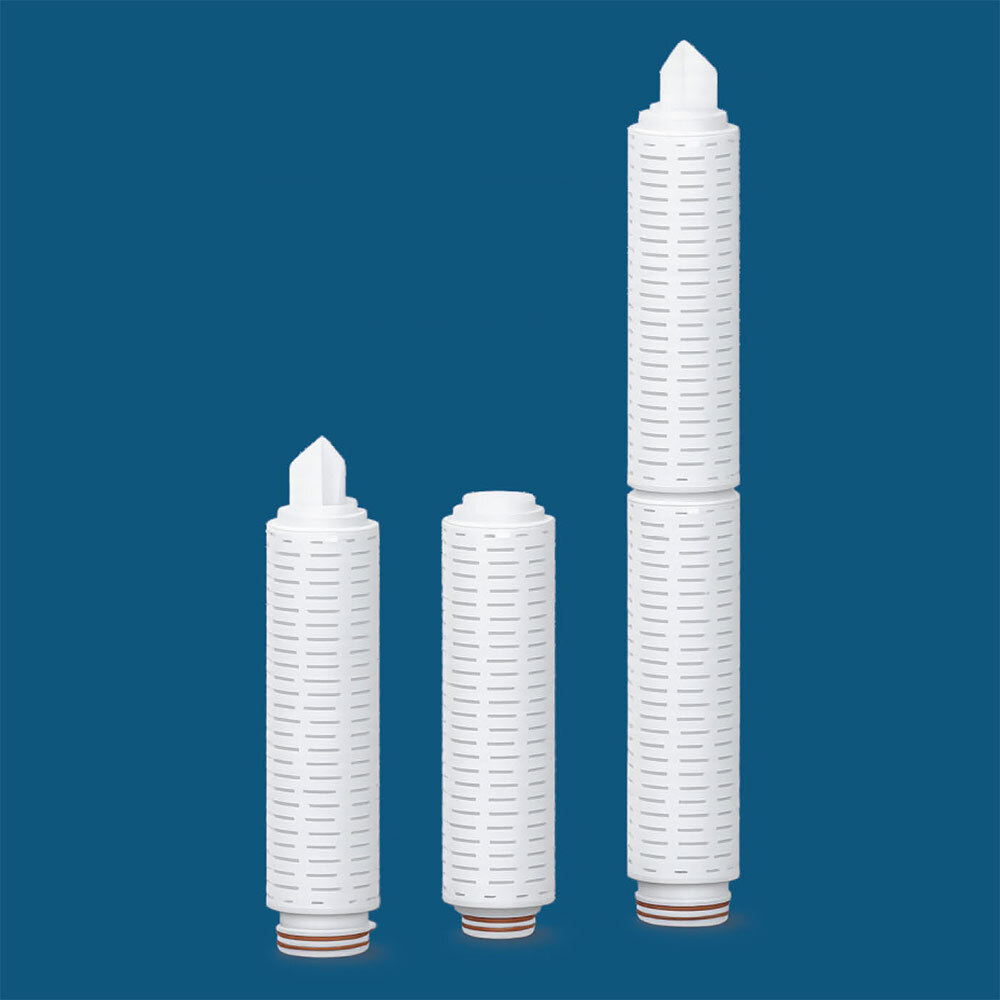

PES Filter Cartridges

Get a Price/Quote

Product Details:

Pressure 4 bar (at 25C)
Filter Rating 0.1, 0.2, 0.45, 0.65 microns
Outlet Diameter Standard 69 mm (custom options available)
Shape Cylindrical
Sealing Thermal Bonded, Silicone, EPDM, Viton or PTFE encapsulated O-rings
Filter Media PES (Polyethersulfone)
Pore Size 0.1, 0.2, 0.45, 0.65 m
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PES Filter Cartridges Price And Quantity

Minimum Order Quantity 50 Piece

PES Filter Cartridges Product Specifications

Application Pharmaceutical, Food & Beverage, Electronics, Laboratory, Water Purification
Type Pleated Cartridge Filter
Diameter 69 mm
Inlet Diameter Standard 69 mm (custom options available)
Material Other
Outlet Diameter Standard 69 mm (custom options available)
Filter Rating 0.1, 0.2, 0.45, 0.65 microns
Pressure 4 bar (at 25C)
Cartridge Style Double Open End, Single Open End, with various end cap configurations
Efficiency 99.99%
Product Type Membrane Filter Cartridge
Pore Size 0.1, 0.2, 0.45, 0.65 m
Filter Media PES (Polyethersulfone)
Sealing Thermal Bonded, Silicone, EPDM, Viton or PTFE encapsulated O-rings
Shape Cylindrical

Total Surface Area 0.7 m2 per 10
Maximum Differential Pressure 4.2 bar at 25C
Retention Absolute
Pre-Flush Volume Minimally required, <300 ml per 10
Operating Temperature Maximum 80C
Sterilization Autoclavable or Steam sterilizable up to 121C
Color White
Length 10, 20, 30, 40 inches
Extractables Low, suitable for sensitive applications
End Cap Code 222/Fin, 226/Flat, DOE etc.

PES Filter Cartridges Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Widely use in Industries:

Pharmaceutical Processes
Biotechnology Processes
Industrial Water Treatment

Material of Construction - Filter Media	Polyethersulfone (PES) Media
Material of Construction - Support Layers, Drainage Layers	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material Of Construction - Outer Cage, Inner Support, End Caps	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - O-ring/ Gaskets	Silicone / EPDM / Viton / PTFE Encapsulated
End Configurations Available	DOE/ 226 with Fin (Code 7) / 226 with Flat Ca / 222 with Fin (Pushfit type) / 222 with Flat Cap / Other Custom SOE connections
Pore Sizes Available (um)	0.2 5
Available Lengths	5" to 40"
Efficiency of Filter	More than 99%
Manufacturing Environment	Class 10000 Clean Room
Maximum Operating Temperature	80C
Max. Differential Pressure (In Direction of Flow)	0.4 MPa @ 20C; 0.2 MPa @ 60C
Inline Steam Sterilization	Not Less Than 15 Cycles (121C, 30 min)
Integrity Test (Water Intrusion Test)	0.4347 Mpa (Sample value for 0.2 )
Biosafety	Meet the requirements for the USP 23 Class VI Plastics Test
Oxidizable Substances	Meet the current USP requirements

Discover our PES Filter Cartridges-now available at a reduced price, making these scarce, high-performance cartridges the best-priced filtration solution on the market. With impeccable efficiency (99.99%), absolute retention, and lofty filtration standards, they excel in pharmaceutical, food & beverage, electronics, laboratory, and water purification applications. Each cartridge is constructed from polyethersulfone and polypropylene support with unbeatable low extractables, accommodating pressures up to 4.2 bar at 25C. Compatible with a range of end caps, these cartridges are autoclavable and steam-sterilizable up to 121C, ensuring unmatched reliability.

Method & Direction for PES Filter Cartridges

Apply PES Filter Cartridges by securely inserting into compatible filter housings, ensuring orientation for optimal flow. They suit pharmaceutical, food, beverage, electronics, laboratories, and water purification. Use the right configuration-DOE or SOE with various end caps-matching your system requirements. Pre-flush briefly as minimally required (<300 ml/10"), then proceed as per your application's flow demands. Absolute retention and high efficiency guarantee precise results in sensitive filtration environments.

Packaging & Valuation Details for PES Cartridges

Our PES Filter Cartridges are packaged securely to maintain integrity during transport. List price reflects competitive market valuation for premium quality; clients benefit from optimal expenditure versus performance ratio. Payment terms are flexible to suit distributor or end-user preference in India. The main domestic market covers industrial hubs and pharmaceutical centers nationwide, guaranteeing swift delivery and reliable aftersales support to valued customers.

FAQ's of PES Filter Cartridges:

Q: How should PES Filter Cartridges be installed for best results?

A: PES Filter Cartridges must be inserted into compatible housings with proper orientation-matching the end cap code and configuration (222/Fin, 226/Flat, DOE) to your system-for optimal performance. Always pre-flush as specified.

Q: What are the primary advantages of choosing PES Filter Cartridges over alternatives?

A: These cartridges offer absolute retention, low extractables, and high efficiency (99.99%), making them ideal for sensitive applications such as pharmaceuticals, food & beverage, electronics, and water purification.

Q: When is sterilization recommended for PES Filter Cartridges?

A: Sterilization-via autoclave or steam up to 121C-is recommended before critical applications, particularly in pharmaceutical and laboratory uses, to ensure highest cleanliness and integrity.

Q: Where are PES Filter Cartridges mainly used?

A: PES Filter Cartridges are extensively used in pharmaceutical, food and beverage processing, electronics manufacturing, laboratory filtration, and water purification industries.

Q: What process ensures minimal extractables in these cartridges?

A: Rigorous manufacturing and strict material selection ensure that PES Filter Cartridges have low extractables, making them safe and highly suitable for sensitive or high-purity applications.

Q: How does the best price point affect long-term usage and value?

A: The reduced, best price and unbeatable performance provide an excellent long-term value, minimizing overall expenditure without compromising on filtration quality or reliability.
