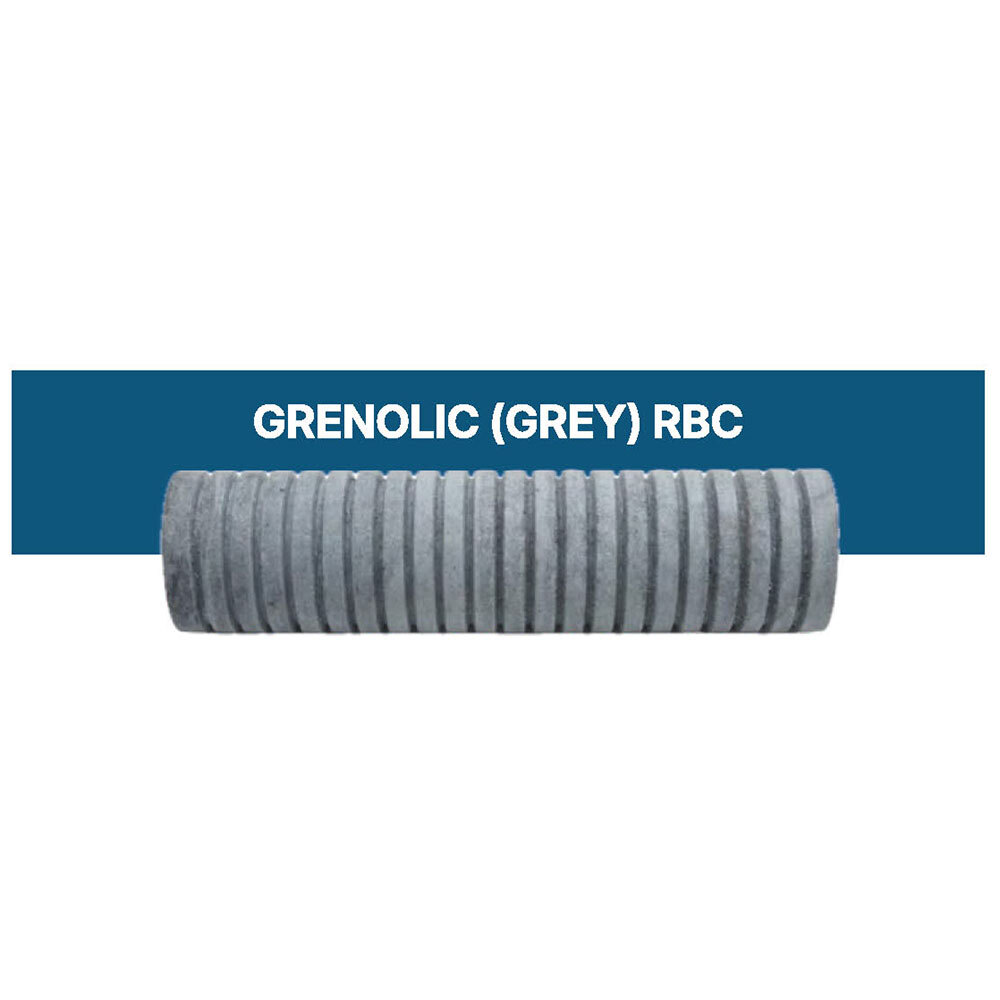

Resin Bonded Filter Cartridges Grenolic (Grey) RBC

Get a Price/Quote

Product Details:

Filter Rating 1 to 100 micron (as per requirement)
Shape Cylindrical
Pore Size Customizable, typically 1-100 micron
Filter Media Resin bonded cellulose fiber
Sealing Flat gasket or O-ring, as required
Pressure Maximum up to 7 bar (100 psi)
Product Type Grenolic (Grey) RBC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Resin Bonded Filter Cartridges Grenolic (Grey) RBC Price And Quantity

Minimum Order Quantity 50 Piece

Resin Bonded Filter Cartridges Grenolic (Grey) RBC Product Specifications

Diameter 1 inch, 1.5 inch, or as required
Pressure Maximum up to 7 bar (100 psi)
Efficiency Up to 99% fine particulate removal
Filter Media Resin bonded cellulose fiber
Cartridge Style Grooved, cylindrical
Sealing Flat gasket or O-ring, as required
Material Other
Product Type Grenolic (Grey) RBC
Pore Size Customizable, typically 1-100 micron
Filter Rating 1 to 100 micron (as per requirement)
Shape Cylindrical
Application Liquid and gas filtration, chemical processing, oil, and solvent filtration
Type Resin Bonded Filter Cartridge

Length 10 inch, 20 inch, 30 inch, 40 inch (custom lengths available)
Core Type Solid core or coreless, as specified
Maintenance Replaceable cartridge, non-washable type
Usage Suitable for highly viscous fluids and aggressive chemicals
End Cap DOE (Double Open End) or SOE (Single Open End)
Compatibility Compatible with various industrial housings
Color Grey
Flow Rate Varies with micron rating and cartridge size; typically up to 40 LPM per 10-inch cartridge
Maximum Operating Temperature Up to 120C

Resin Bonded Filter Cartridges Grenolic (Grey) RBC Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Widely use in Industries:

Oil Filtration Industries
Breweries and Alcohol Production
Chemical Manufacturing
Industrial Water Treatment
Pharmaceutical Processes
Edible Oil Filtration
Paints, Coatings, Resins Production

Parameter	Specification
Material of Construction	Brown RBC: Intrinsically bonded alpha cellulose fibres with melamine formaldehyde (MF) resin Brown RBC: Specially formulated fibres impregnated with phenol formaldehyde (PF) resin Grey RBC: Specially formulated fibres impregnated with melamine formaldehyde (MF) resin
Food Grade Compatibility	White RBC are compatible as per FDA 21 CFR
Length	50 mm to 1016 mm
Surface Type	Grooved / Plain
End Connections	DOE / SOE
Outer Diameter Inner Diameter	63 mm OD 28 mm ID 70 mm OD 25 mm ID 130 mm OD 68 mm ID
Pore Sizes Available	Fine Filters: 0.1 m / 0.2 m / 0.45 m / 0.5 m Pre Filters: 1 m / 3 m / 5 m Basic Filters: 10 m / 25 m / 50 m / 75 m / 100 m
Flowrate from Single 10" Filter Element	Up to 1200 litres/hour (Water) Up to 300 litres/hour (Oil - 68 cSt)
Maximum Operating Temperature	White RBC: 100C Brown RBC: 140C Grey RBC: 121C
Maximum Pressure	White RBC: 60 psi (4.2 kg/cm) Brown RBC: 90 psi (6.2 kg/cm) Grey RBC: 90 psi (6.2 kg/cm)
Recommended Change-Out Differential Pressure	Increase of 2 Bar in pressure from the initial working pressure of a new cartridge

Buy Online the Pristine Resin Bonded Filter Cartridges Grenolic (Grey) RBC, engineered for unrivaled performance in demanding environments. With dominant filtration efficiency up to 99% and customizable lengths from 10 to 40 inches (and more), these cartridges handle aggressive chemicals and highly viscous fluids with ease. Choose DOE or SOE end caps, solid or coreless options, and micron ratings tailored to your process needs. Limited stock-reserve yours today to secure consistent industrial filtration. Ideal for liquid and gas filtration, chemical processing, and oil/solvent purification.

Exceptional Features & Industrial Applications

Resin Bonded Filter Cartridges Grenolic (Grey) RBC offer dominant, pristine filtration for diverse plant needs. Their robust cellulose fibers bonded with phenolic resin ensure unrivaled compatibility with aggressive chemicals and viscous fluids. Available in grooved, cylindrical form, they fit 1-inch or 1.5-inch diameters and offer tailored pore sizes. Widely used across liquid and gas filtration, chemical processing, and oil/solvent industries, these non-washable, replaceable cartridges deliver consistent, high efficiency in rigorous plant operations.

Order Processing, Transit & Supply Offerings

Order Processing for Resin Bonded Filter Cartridges Grenolic (Grey) RBC is streamlined for efficiency. We offer prompt Goods Transport via your preferred mode from India's key FOB ports. Serving the main domestic market nationwide, our supply ability supports both standard and custom orders, ensuring reliability for industrial clients. Take advantage of our exclusive offer to reserve limited stock and receive robust, timely deliveries to support ongoing industrial requirements without interruption.

FAQ's of Resin Bonded Filter Cartridges Grenolic (Grey) RBC:

Q: How do I determine the correct cartridge length and micron rating for my application?

A: Cartridge length and micron rating depend on your specific filtration requirements, fluid characteristics, and flow rate needs. Assess your process for particle size to be removed, compatibility, and system housing, then select a suitable length (10, 20, 30, or 40 inches) and micron value (1-100 micron or custom).

Q: What are the main benefits of using Grenolic (Grey) RBC resin bonded filter cartridges?

A: Grenolic (Grey) RBC filters provide up to 99% particulate removal efficiency, exceptional chemical and temperature resistance, and compatibility with various industrial housings, ensuring pristine filtration-even for highly viscous or aggressive solutions.

Q: Where are these cartridges commonly used?

A: These cartridges are widely employed in liquid and gas filtration, chemical processing, oil and solvent filtration, as well as other industrial applications requiring robust, high-performance filtration.

Q: What is the recommended process for cartridge replacement and maintenance?

A: As non-washable cartridges, Grenolic (Grey) RBC units should be replaced after their specified service life or when flow rate drops or differential pressure rises, ensuring maintained system efficiency.

Q: When should I reserve cartridges due to limited stock?

A: To ensure uninterrupted operations, it's advisable to reserve cartridges as soon as you identify your need, particularly for custom sizes or bulk orders, since stock is limited and demand may vary.

Q: How are orders processed and shipped domestically?

A: Upon order confirmation, goods are promptly processed and transported from major FOB ports in India to your location through reliable logistics partners, guaranteeing timely delivery nationwide.
