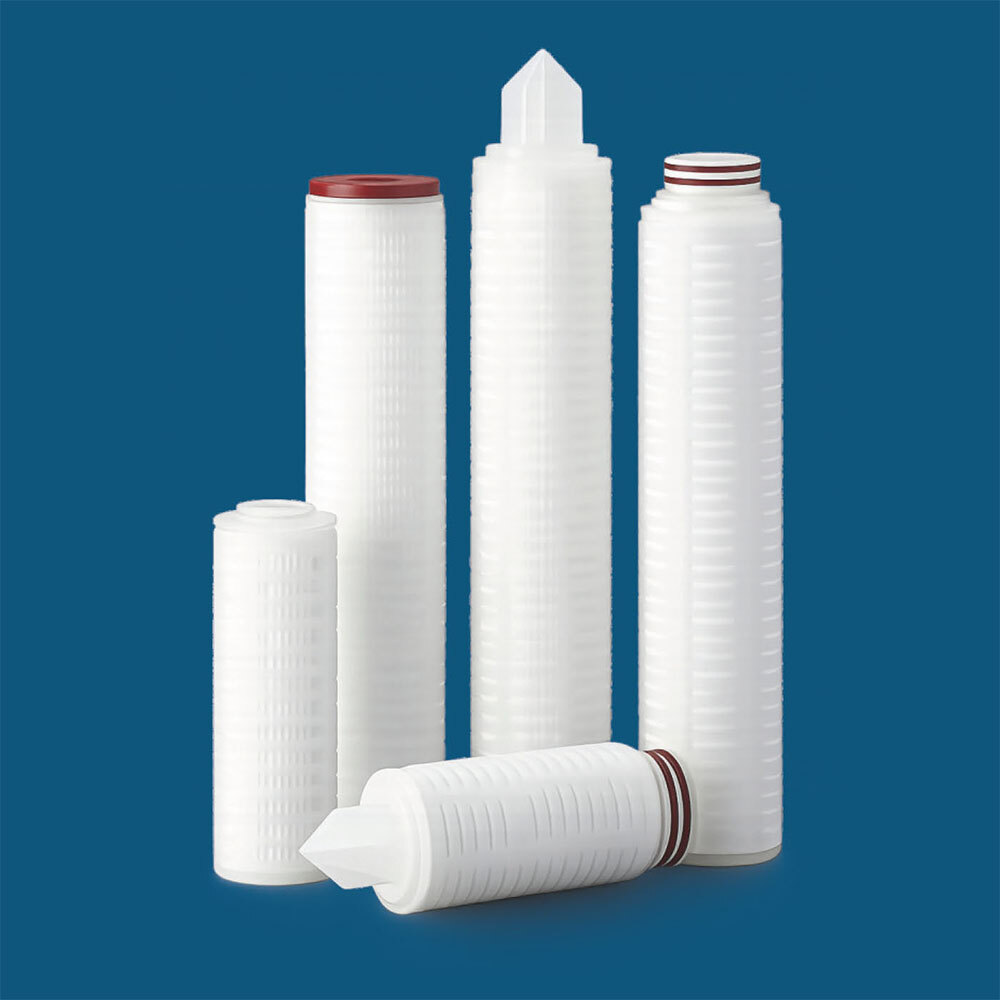

PTFE Filter Cartridges

Get a Price/Quote

Product Details:

Pressure Up to 4.1 bar (at 25C)
Outlet Diameter Standard 69 mm
Pore Size 0.1-5 micron
Sealing Silicone, EPDM, Viton, Teflon Encapsulated (O-Rings/Gaskets)
Shape Cylindrical
Filter Rating 0.1, 0.2, 0.45, 1, 3, 5 micron options
Inlet Diameter Standard 69 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PTFE Filter Cartridges Price And Quantity

Minimum Order Quantity 50 Piece

PTFE Filter Cartridges Product Specifications

Application Chemical Processing, Pharmaceuticals, Food & Beverage, Water Treatment
Product Type PTFE Filter Cartridge
Sealing Silicone, EPDM, Viton, Teflon Encapsulated (O-Rings/Gaskets)
Shape Cylindrical
Pore Size 0.1-5 micron
Efficiency 99.99%
Outlet Diameter Standard 69 mm
Pressure Up to 4.1 bar (at 25C)
Material Other
Cartridge Style Double Open End (DOE) / Single Open End (SOE)
Type Pleated Filter Cartridge
Filter Media Hydrophobic PTFE Membrane
Diameter 68 mm
Inlet Diameter Standard 69 mm
Filter Rating 0.1, 0.2, 0.45, 1, 3, 5 micron options

Inner Core Polypropylene
Outer Support Polypropylene
Cleanliness Non-fiber releasing, Pre-rinsed with ultra-pure water
Maximum Operating Temperature 90C
End Cap Style 222/Flat, 226/Flat, 222/Fin, 226/Fin
Length 5
Sterilization Method Autoclave or in-situ steam (121C, 30 minutes)
Flow Rate >10 LPM per 10
pH Range 1-14
Color White
Surface Area 0.6 m2 per 10

PTFE Filter Cartridges Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 7 Days

Product Description

Widely use in Industries:

Pharmaceutical Processes
Biotechnology Processes
Semiconductor Production
Chemical Processes

Material of Construction - Filter Media	Polytetrafluoroethylene (PTFE) Media
Material of Construction - Support Layers, Drainage Layers	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material Of Construction - Outer Cage, Inner Support, End Caps	Polypropylene (Approved as per FDA regulations 21 CFR 177.1520)
Material of Construction - O-ring/ Gaskets	Silicone / EPDM / Viton / PTFE Encapsulated
End Configurations Available	DOE/ 226 with Fin (Code 7) / 226 with Flat Ca / 222 with Fin (Pushfit type) / 222 with Flat Cap / Other Custom SOE connections
Pore Sizes Available (um)	0.2 10
Available Lengths	5" to 40"
Efficiency of Filter	More than 99%
Manufacturing Environment	Class 10000 Clean Room
Maximum Operating Temperature	80C
Max. Differential Pressure (In Direction of Flow)	0.5 MPa @ 20C; 0.2 MPa @ 80C
Inline Steam Sterilization	Not Less Than 15 Cycles (121C, 30 min)
Integrity Test (Water Intrusion Test)	WIT: 8ml/10Min @ 2600 mbar
Biosafety	More than 999 mbar in alcohol (IPA/Water 70/30)
Biosafety	Meet the requirements for the USP 23 Class VI Plastics Test
Oxidizable Substances	Meet the current USP requirements

Discover the inestimable value of our PTFE Filter Cartridges, now available at a reduced price as part of our exclusive featured offer. Noteworthy for their precision and versatility, these glorious filtration solutions are ideal for chemical processing, pharmaceuticals, food & beverage, and water treatment applications. Engineered with a hydrophobic PTFE membrane, offering a remarkable 99.99% efficiency across 0.1-5 micron ratings. Choose from 5", 10", 20", 30", and 40" lengths, with robust polypropylene supports ensuring durability. Experience reliable, non-fiber releasing filtration, backed by autoclave or in-situ steam sterilization capability.

PTFE Filter Cartridges: Breakthrough Features for Broad Applications

PTFE Filter Cartridges deliver superior chemical compatibility, making them ideal for pharmaceutical, food & beverage, water treatment, and chemical processing industries. Primary competitive advantages include exceptional 99.99% filtration efficiency and extended pH range (1-14). Notable features are the non-fiber releasing, pre-rinsed construction, multiple end cap styles, and various length options, ensuring seamless integration and optimal filtration in critical processes.

Sample Policy, Domestic Reach, and Assurance

PTFE Filter Cartridges can be sampled under a transparent proposal amount policy, ensuring evaluation before bulk shipment. Goods transport is swift, covering the main domestic market of all India through reliable logistic partners. Certified under recognized quality standards, each cartridge is shipped with meticulous documentation. Our commitment to quality guarantees not only leading performance but also secure and prompt delivery to your facility.

FAQ's of PTFE Filter Cartridges:

Q: How can PTFE Filter Cartridges be sterilized for reuse?

A: PTFE Filter Cartridges can be sterilized using either autoclave or in-situ steam at 121C for 30 minutes, allowing safe and repeated use in stringent environments.

Q: What makes these filter cartridges suitable for chemical and pharmaceutical industries?

A: Their hydrophobic PTFE membrane provides exceptional chemical resistance, broad pH compatibility, and high filtration efficiency (99.99%), making them ideal for sensitive processes in these sectors.

Q: What are the standard sizes and customization options available?

A: The cartridges are available in lengths of 5", 10", 20", 30", and 40", with options for 222/Flat, 226/Flat, 222/Fin, and 226/Fin end caps, and various micron ratings (0.1 to 5).

Q: Where is the primary domestic market for these PTFE Filter Cartridges?

A: These filter cartridges are primarily supplied across all major locations in India through established goods transport networks.

Q: What benefits can users expect from using these cartridges?

A: Users benefit from high flow rates, non-fiber releasing construction, reliable sealing, and assured cleanliness, optimizing operation in critical filtration media.
